What are the working voltage thresholds for DEBUT devices?

For different models with different transmission methods, battery capacity, etc., tests have been carried out and optimized working voltage thresholds have been set.

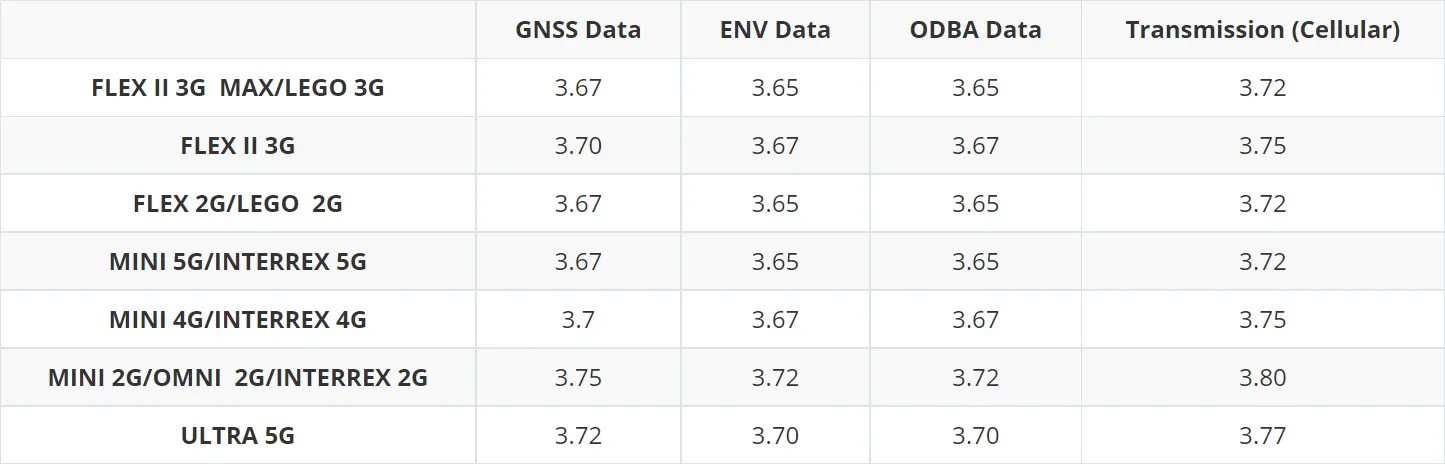

Cellular Model - Working Voltage Thresholds (V)

Note: For earlier version of FLEX 2G and LEGO 2G, the GNSS data collection voltage threshold is set at 3.65 V.

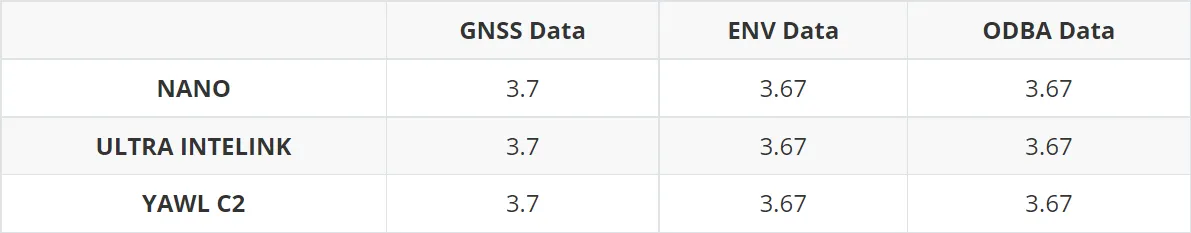

INTELINK Model - Working Voltage Thresholds (V)

Note: INTELINK transmission voltage threshold is not set. As the voltage drops, the INTELINK broadcasting of a device becomes less frequent (but doesn’t stop), meaning it takes longer time to detect the device via a gateway like Ecotopia App or HUB.

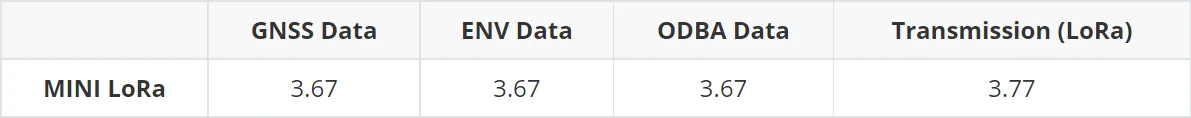

LoRa Model - Working Voltage Thresholds (V)

Satellite Model - Working Voltage Thresholds (V)
