How to charge X-Filming/Coating devices?

Before you start

Make sure that you have the following things ready.

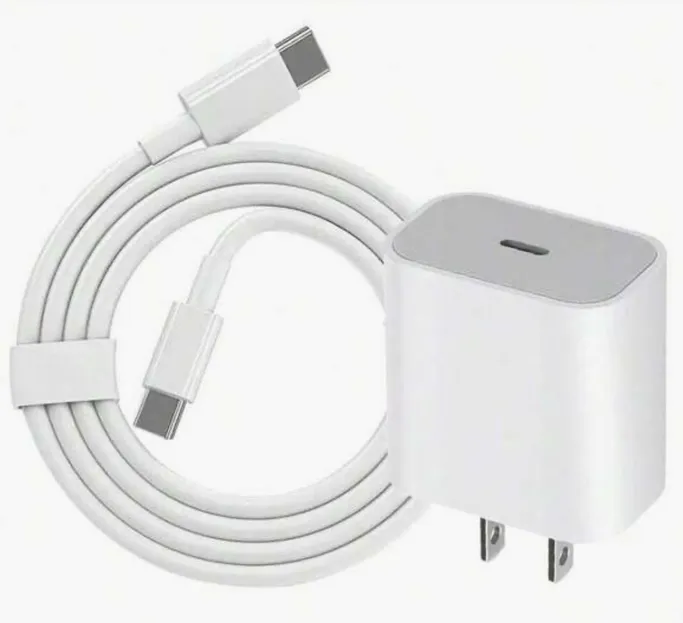

• Charger plug with Type-C wire
  You need to prepare this by yourself. Make sure that it is with a maximum voltage of 5 V and a minimum ampere of 200 mA.

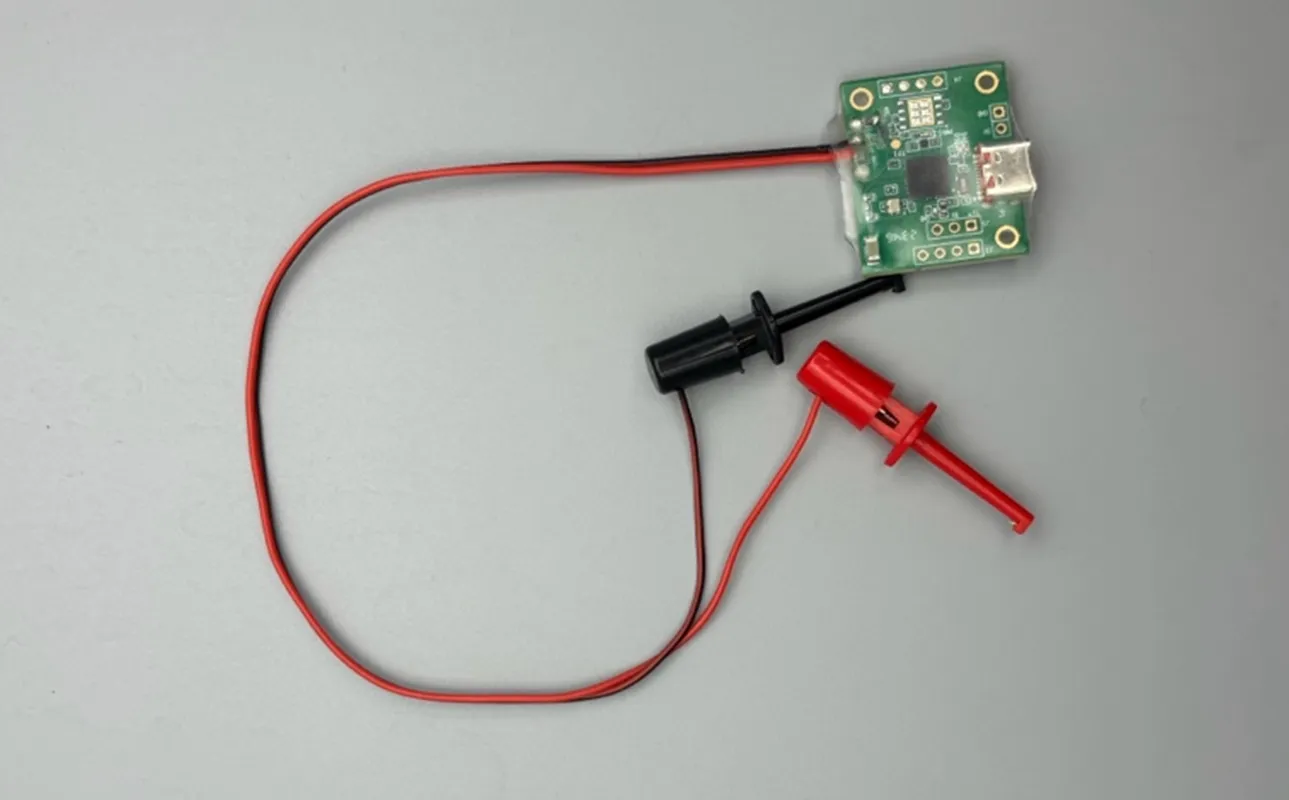

• Type-C Charger
  This is supplied by Druid, with over-charging protection for the devices.


Steps

1. Connect your charger plug to the Type-C charger.

2. Prepare the device.

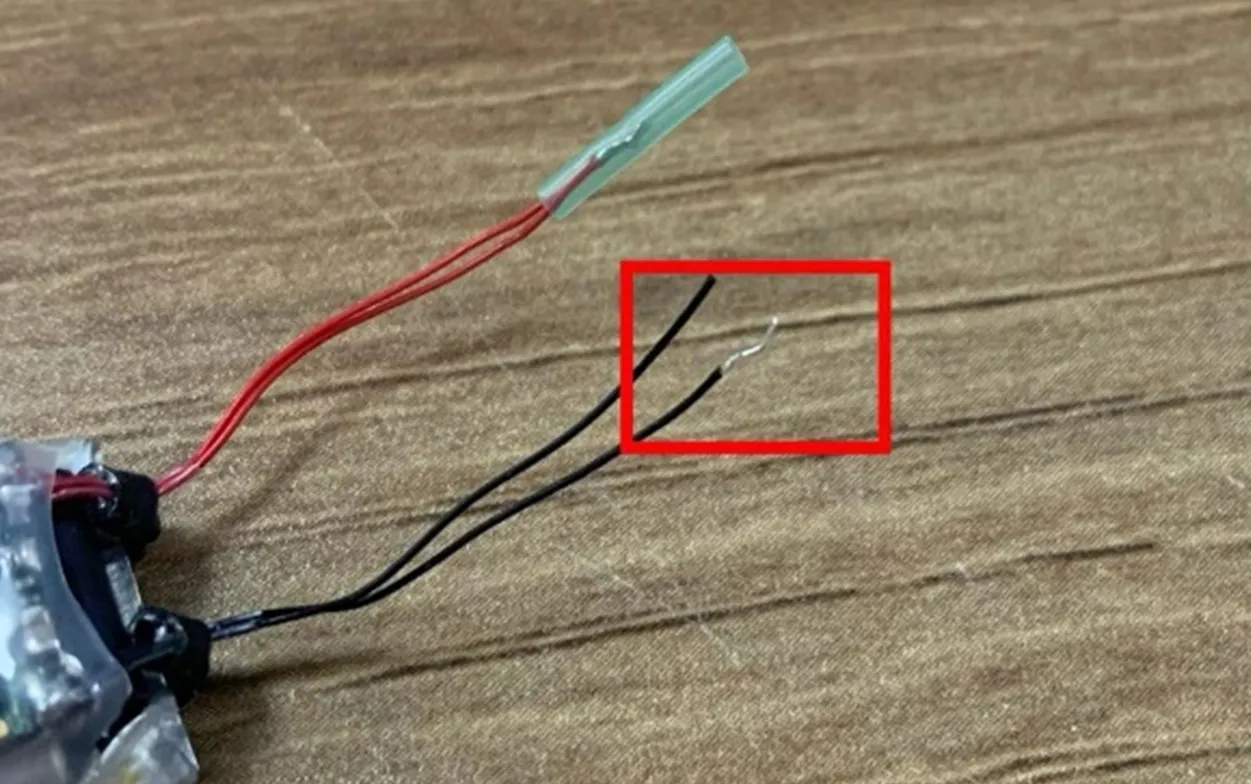

   Identify the 2 black and 2 red wires on the device for battery charging, and remove the tip insulation from one black and one red wire. (Two wires for each color is for the purpose of backup, in case the wire damaged in the wild environment.)


3. Connect the charger to device.

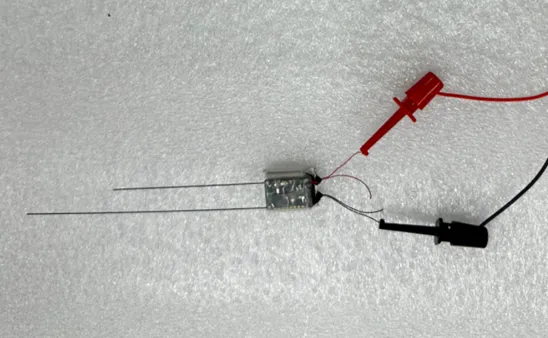

   Connect the hooker parts of the charger to the exposed wires of the matching color.


4. Initiate charging.
   Connect the charger plug to the power supply, and the blue/green LED on the charger will start blinking, indicating that the battery is charging. Once fully charged, the blue LED will remain constantly on.
   The charging process typically takes 1 to 1.5 hours.

5. Confirm the charging progress.

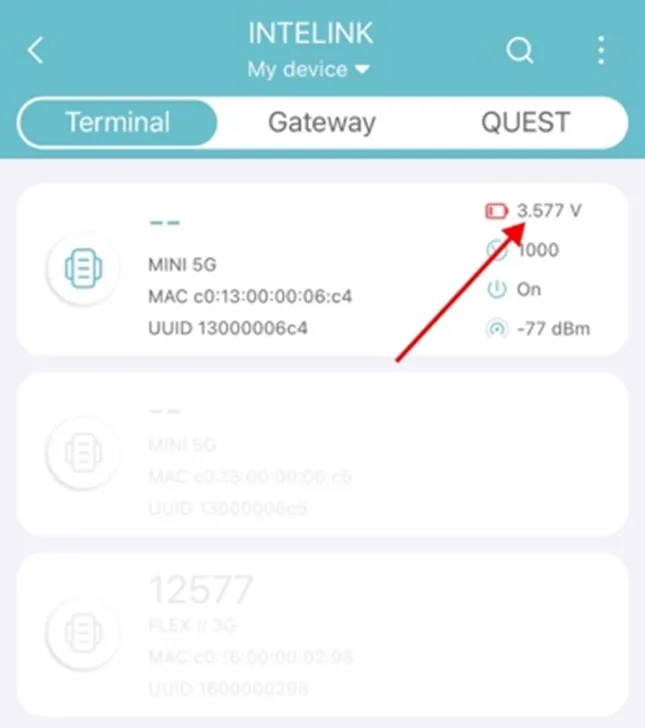

   Use INTELINK feature of Ecotopia App to search for devices. Devices highlighted in the INTELINK scanning result page will show its current battery voltage, as below.

   Voltage at around 4.15 V indicates that the battery is fully charged. Then, disconnect the charger plug and remove the device from the charger.

6. Insulate the charging cables on the device.
   Wrap the exposed core part with anti-static high-temperature tape to complete the insulation process.

Important Notes

Charge devices while powered off for faster charging and to prevent unintentional power consumption post-charging. In energy-saving scenarios, disable BOOST or Edge Intelligence features of the cable-charging models to optimize power management.

For any additional assistance, please contact [email protected].
