Edge Intelligence setting template for flight period

The ODBA values calculated from the raw tri-axial acceleration data and can clearly indicate the activity intensity change rhythm of the organisms. Combined with other information, users can make a rough judgment of animal behaviour.

Therefore, based on the change of ODBA value to adjust the working mode of the device, can help users to capture some behaviour of attention, especially when the device cannot get the ideal energy supplement, based on specific conditions trigger multistage frequency conversion can strategically tilt for energy use, play the best use value of limited energy.

• Basic Setting

  • GNSS interval: 7200 s (adjustable according to device battery)
  • ENV interval: 7200 s (adjustable according to device battery)
  • ODBA interval: 600 s (adjustable according to device battery)
  • Transmission interval: 28,800 s (adjustable according to device battery)

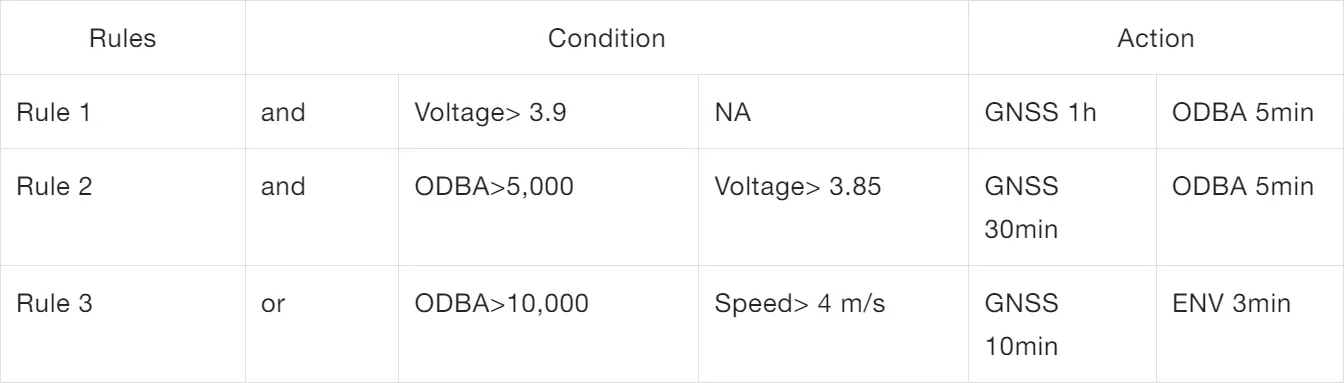

• Edge Intelligence Setting

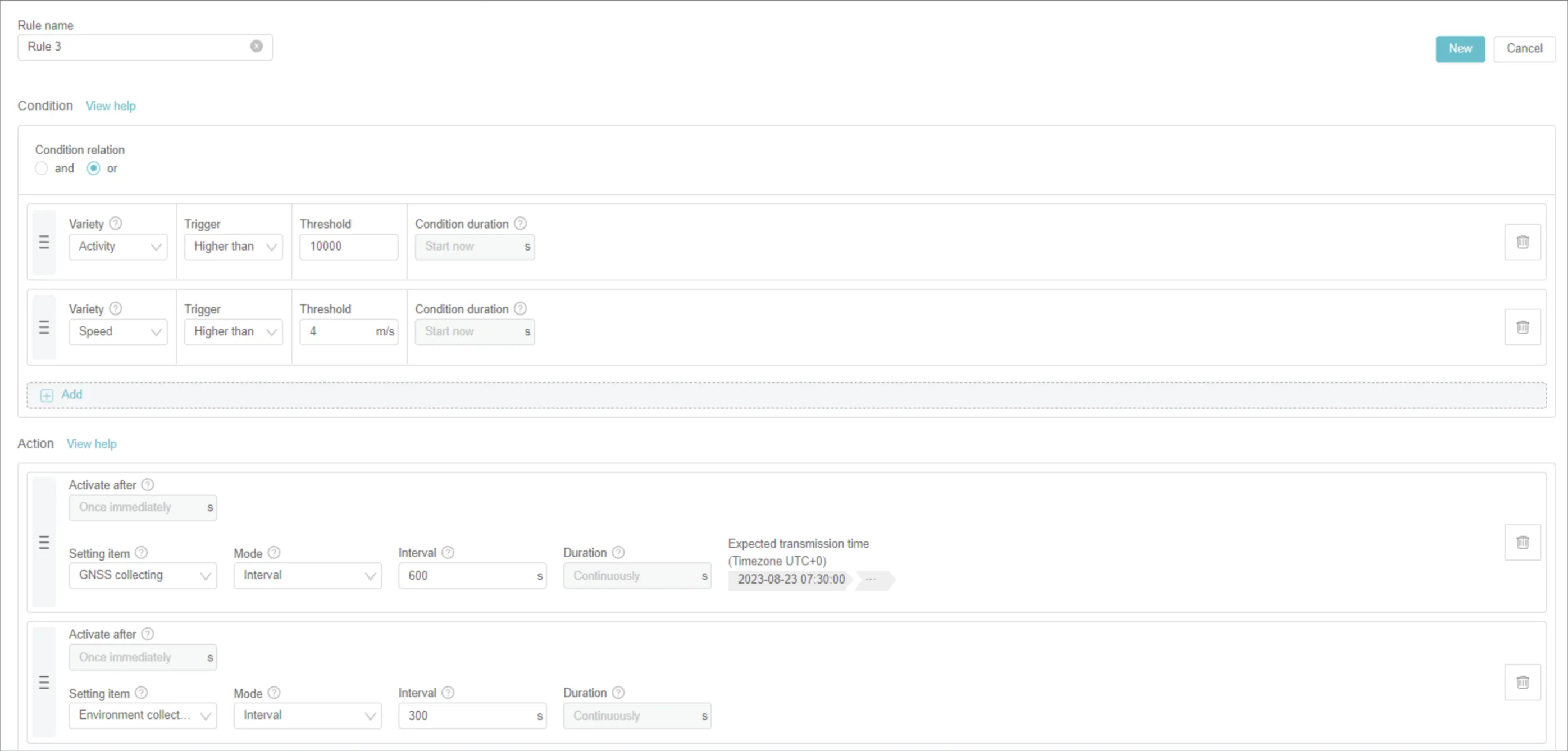

• Setting Demonstration for Rule 3
