Edge Intelligence setting template for time schedule

Detailed movement information of species with large differences in day and night behavioral rhythms or seasonal behaviour can achieved by making edge intelligence setting at a specific period of the day (such as night) or at a future period (such as days or months).

1. Different collection between day and night: Alpine chough (Pyrrhocorax graculus) as an example
   Behavior characteristics: Alpine chough usually active during the day and living in caves at night.
   Setting strategy: due to satellite signal limitation in the cave or forest, GNSS data collected at night is often invalid data, so GNSS collecting is turned off at night to save energy.

   • Basic setting

     • GNSS interval: 2 h
     • ENV interval: 2 h
     • ODBA interval: 10 min
     • Transmission interval: 16 h

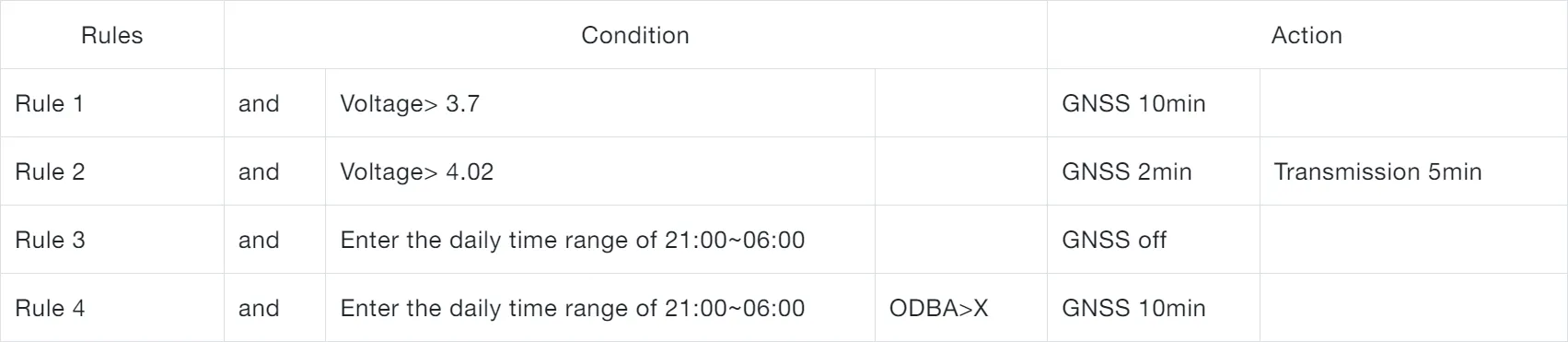

   • Edge intelligence setting



     Note: X is the ODBA value based on observations or papers.

   • Setting Demonstration for Rule 4



2. The sleep mode collection: squirrels as an example
   Behavioral characteristics: hibernation in winter, during which activity stops or occasionally occurs, and normal activity resumes in the coming spring.
   Setting strategy: due to satellite signal limitation, GNSS data collected during hibernation is often invalid data, so GNSS collecting is turned off during hibernation to save energy. Meanwhile, the GNSS sampling frequency and transmission interval were increased when the wake is detected by ODBA determining the wake up during hibernation.

   • Basic setting

     • GNSS interval: 4 h
     • ENV interval: 4 h
     • ODBA interval: 10 min
     • Transmission interval: 16 h

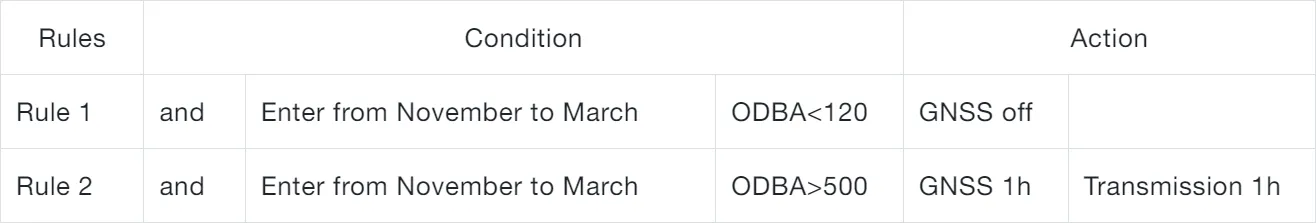

   • Edge intelligence setting

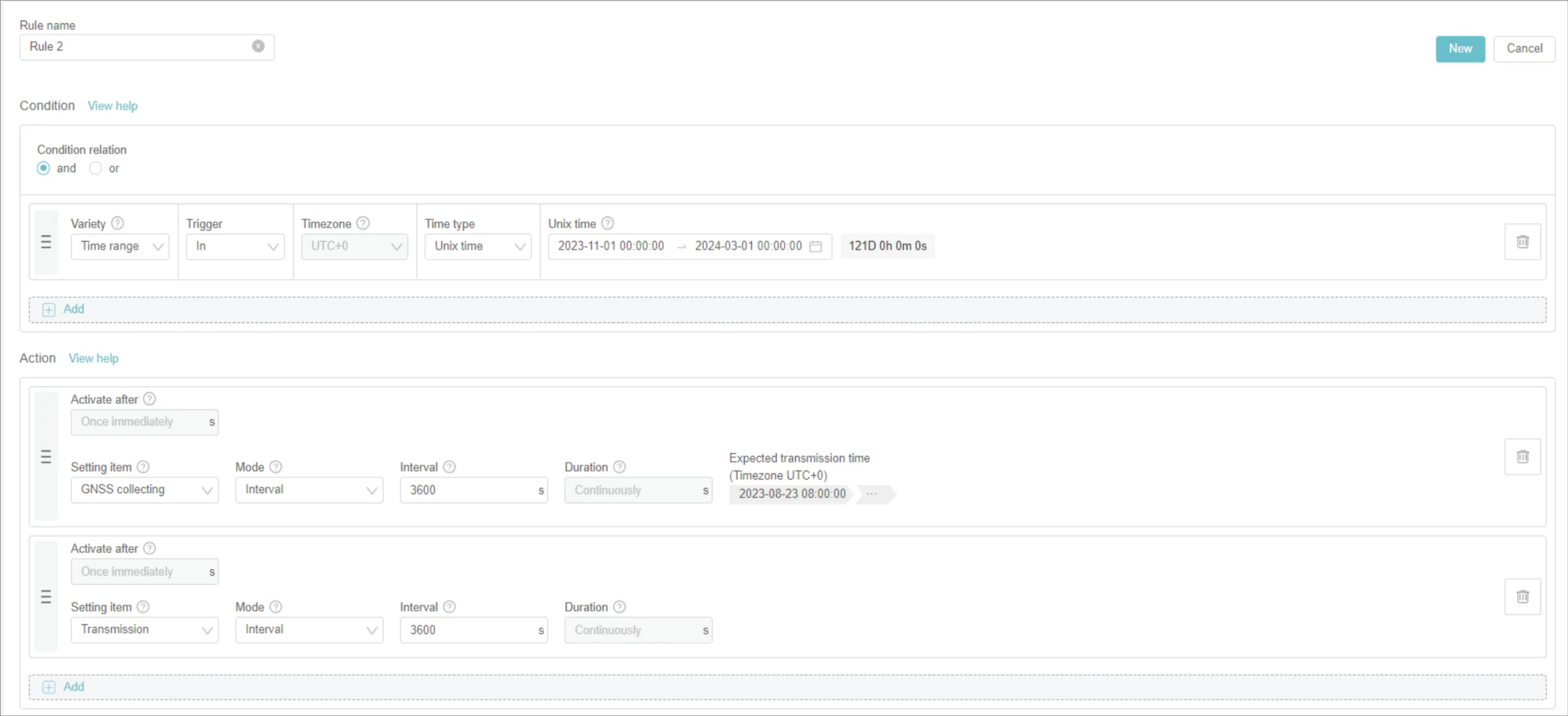

   • Setting Demonstration for Rule 2
