Setting Field Explanation

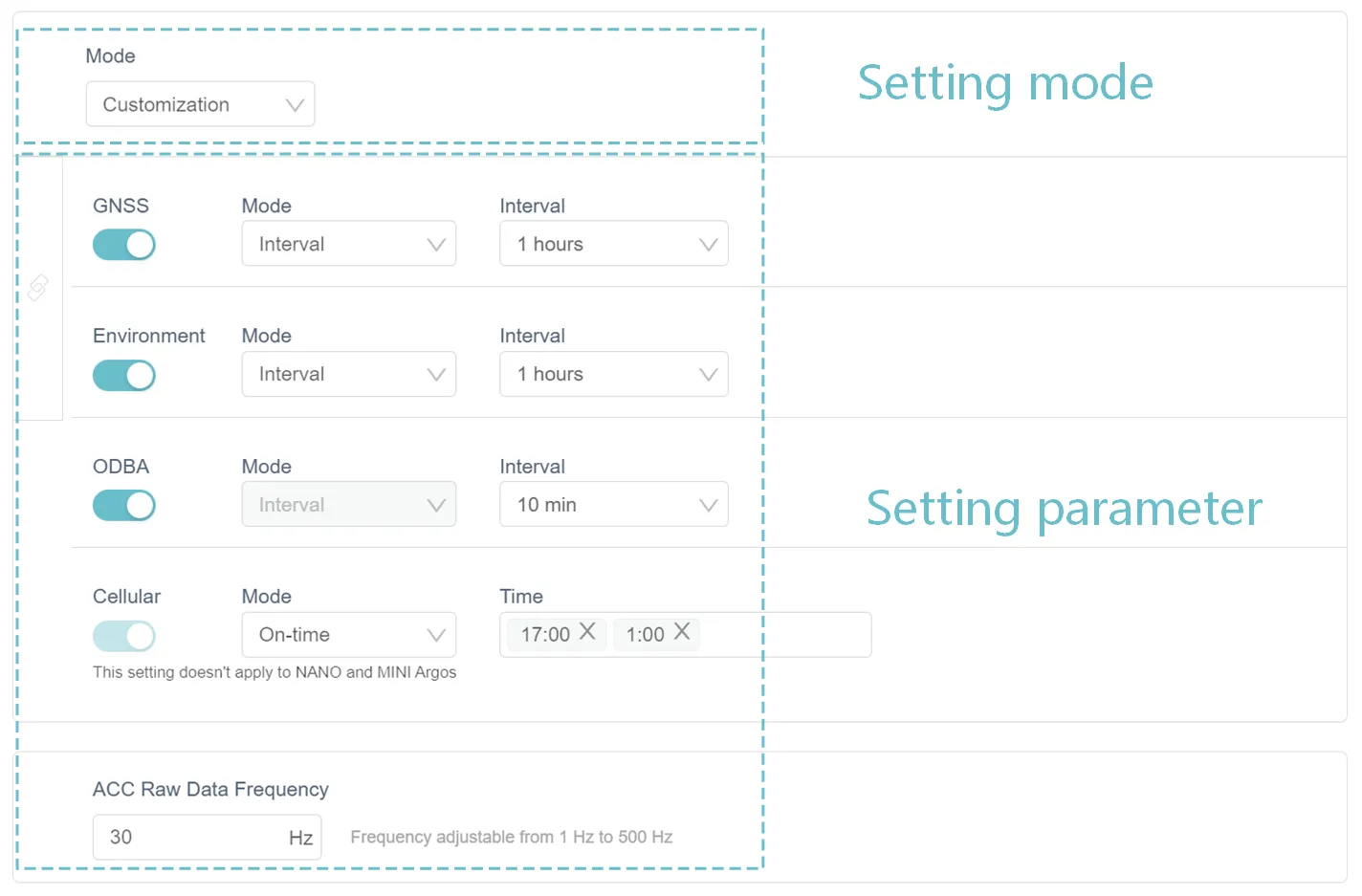

This section gives the explanation to the setting fields on the device setting page.

Setting mode

Real time mode
Interval of GNSS collecting, environment data collecting and ODBA collecting is 10 minutes. Interval of data transmission is 1 day. You cannot change the interval in this mode.

Standard mode
STD mode is the default setting of DEBUT devices. Interval of GNSS collecting and environment data collecting is 4 hours. Interval of ODBA collecting is 10 minutes. Interval of data transmission is 8 hour. You cannot change the interval in this mode.

Ecological—balanced
Interval of GNSS collecting and environment data collecting is 4 hours. ODBA collecting is turned off. Interval of data transmission is 1 day. You cannot change the interval in this mode.

Stand-by mode
GNSS collecting, environment data collecting and ODBA collecting are turned off. Interval of data transmission is 1 day. You cannot change the interval in this mode.

Customized mode
In this mode, you can turn on or turn off GNSS collecting, environment data collecting and ODBA collecting and select the collecting interval and transmission interval as needed.

Setting parameter

BOOST
Enable or disable BOOST.

GNSS data
Enable or disable GNSS data collecting. When enabled, you can set it to Interval mode or Follow transmission mode.

Environment data
Enable or disable environment data collecting. When enabled, you can set it to Interval mode or Follow transmission mode.

ODBA
Enable or disable ODBA collecting. When enabled, you can set the collecting interval to 10 min or 30 min.

Cellular
Enable or disable the cellular transmission. When enabled, you can set it to Interval mode or On-time mode.

Interval
The device transmits data to the server at a selected time interval.

Follow transmission
The interval of data collecting is synchronized with the transmitting interval of the device.

On-time
The device transmits data to the server at selected hour (based on the time zone set in the data center). You can specify up to 3 time options per day.

ACC Raw Data Frequency
Set the data collecting frequency of acceleration raw data
